d&b Y7P Full Range Cabinet
Day: £35
Week: £105

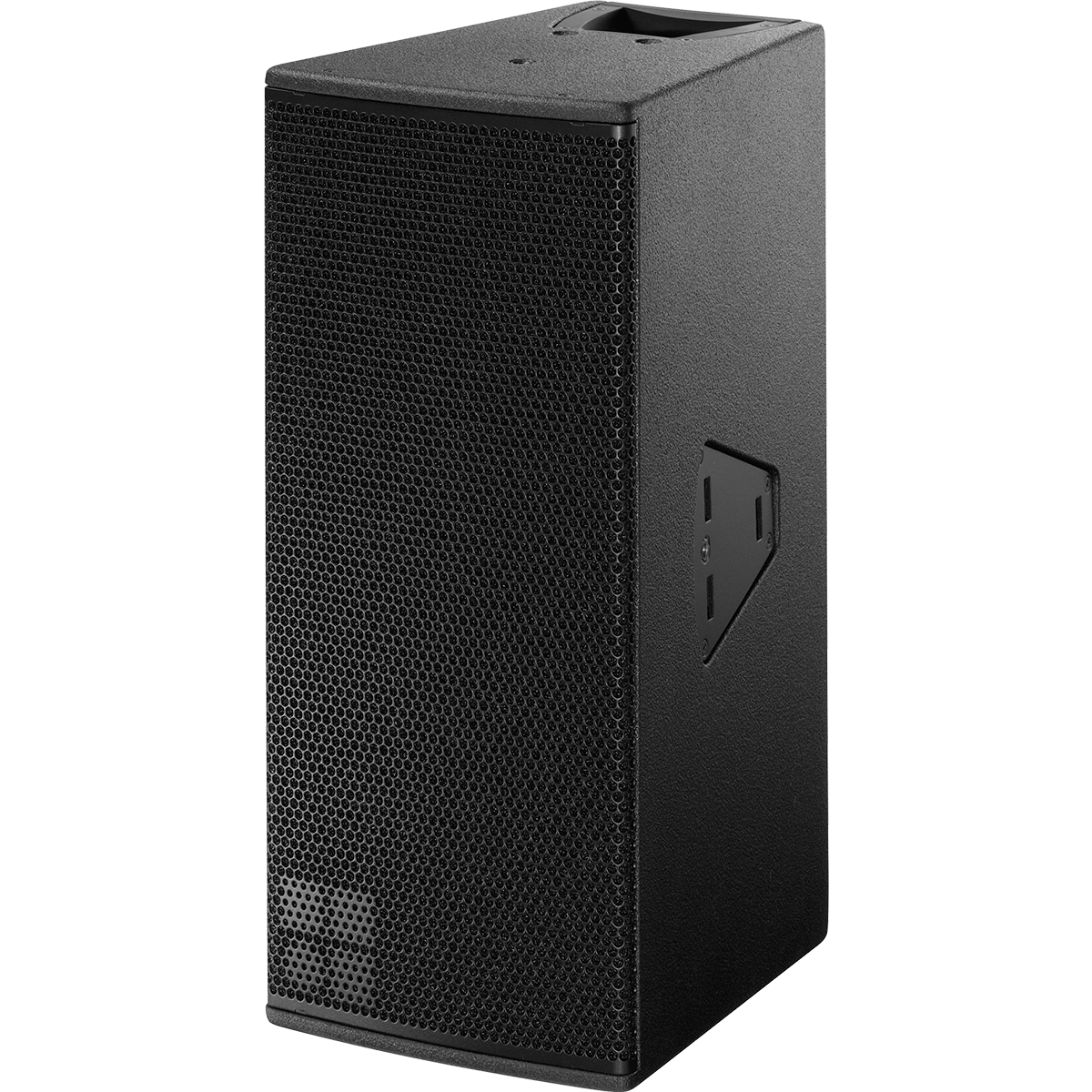

The compact, 2-way passive Y7P loudspeaker features two 8” drivers in a dipole arrangement with a 1.4” compression driver mounted onto a rotatable CD horn. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output.
Additional Information
Specifications
Frequency response (-5 dB standard) 54 Hz – 19 kHz
Frequency response (-5 dB CUT mode) 100 Hz – 19 kHz
Max. sound pressure1
with D6/10D 134 dB
with D20/30D 137 dB
with D80 139 dB
with D6/10D 134 dB
with D20/30D 137 dB
with D80 139 dB
Cabinets per amplifier channel 2
Dimensions
25.7 x 63.0 x 37.5 cm
Weight
18 kg
Manufacturers link
https://www.dbaudio.com/global/en/products/series/y-series/y7p/
