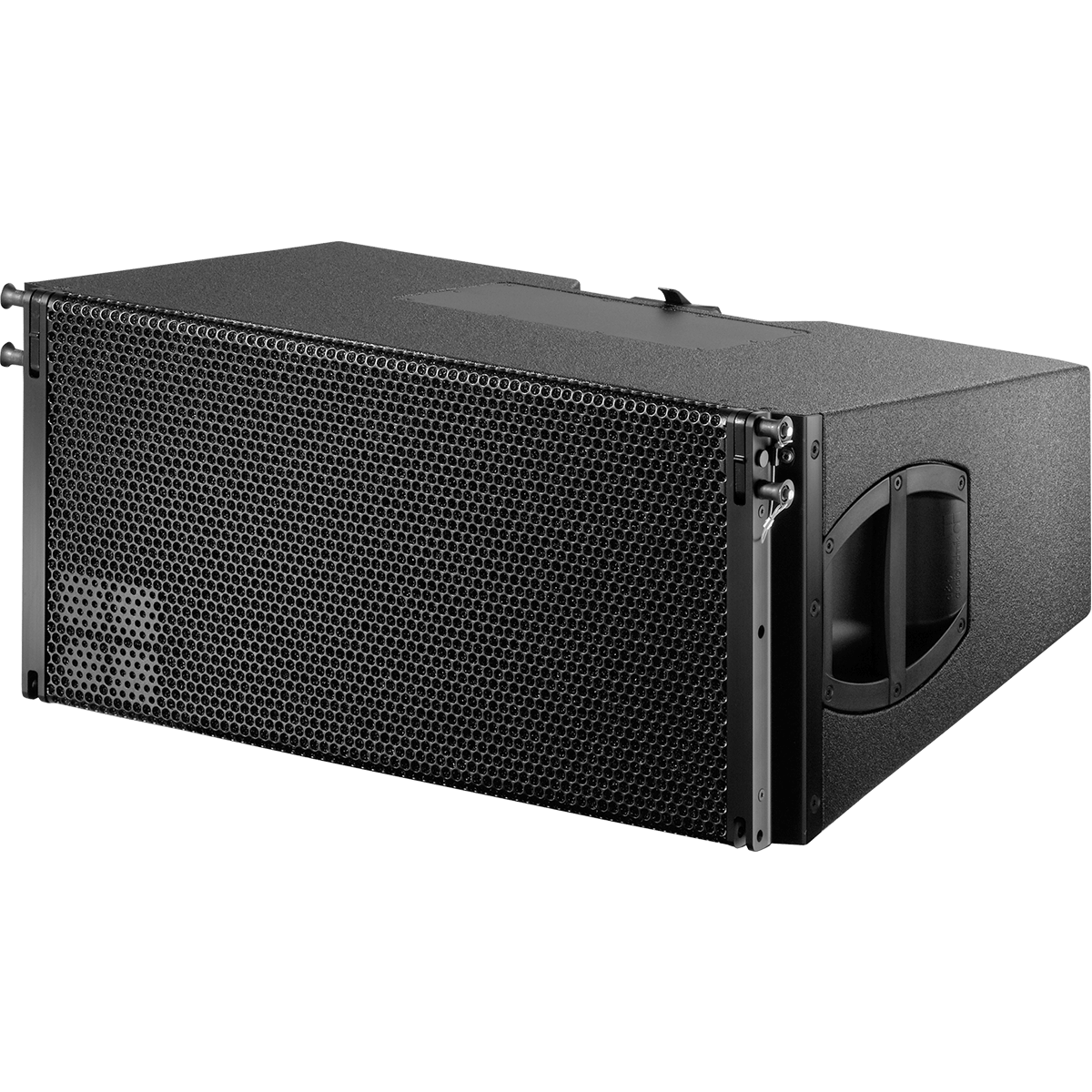

d&b V12 Full Range Cabinet

Day: £45
Week: £135

The V12 is a 3-way passive design housing 2 x 10″ LF drivers, one hornloaded 8″ MF driver and two 1.4″ exit HF compression drivers with 2.5″ voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design.

Additional Information
Frequency response (-5 dB standard) 67 Hz – 18 kHz
Frequency response (-5 dB CUT mode) 100 Hz – 18 kHz
Max. sound pressure1
with D20/30D 139dB
with D80 142dB
Cabinets per amplifier channel 2
31.0 x 70.0 x 46.0 cm
33 kg
