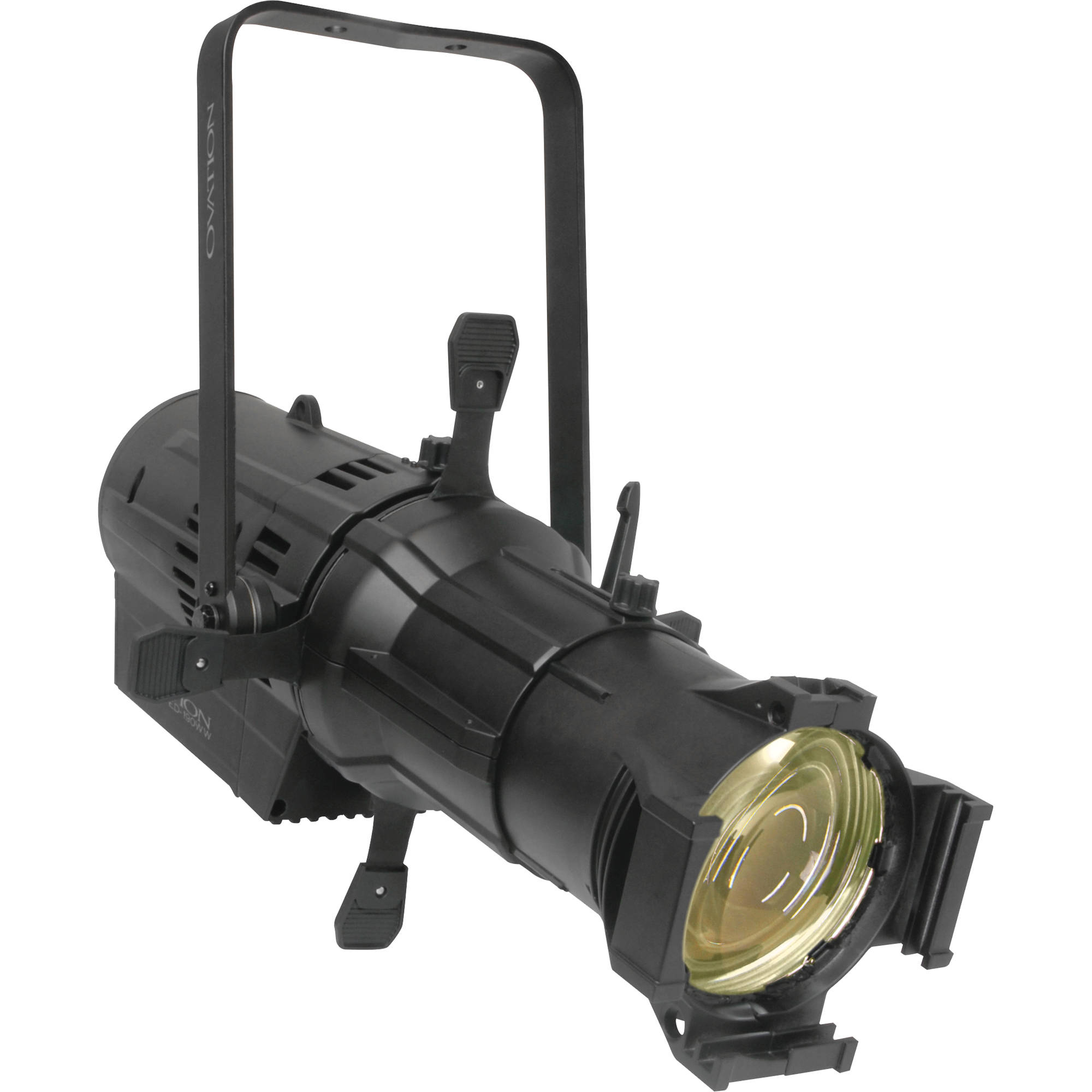

Chauvet Ovation E190 LED Profile
Powered by 19 10-watt LEDs, Ovation E-190WW delivers an excellent white light with a warm color temperature, a beautiful flat field and high CRI for truer color rendering. It also features standard beam shaping shutters, a gobo/effect slot and lens barrels that are interchangeable with other popular ERS fixtures. Setup is fast and easy using Neutrik powerCON power in/out connections as well as the versatility of 3- and 5-pin DMX connections.
Light Source: 19 LEDs (WW) 10 W, (2.8 A), 100,000 hours life expectancy
Color Temperature (at full): 3076 K
Beam Angle (w/19° lens): 16°
Beam Angle (w/26° lens): 22°
Beam Angle (w/36° lens): 31°
Beam Angle (w/50° lens): 48°
Beam Angle (w/15°–30° lens)(Narrow): 14°
Beam Angle (w/15°–30° lens)(Wide): 28°
Beam Angle (w/25°–50° lens)(Narrow): 18°
Beam Angle (w/25°–50° lens)(Wide): 30°
Field Angle (w/19° lens): 22°
Field Angle (w/26° lens): 28°
Field Angle (w/36° lens): 36°
Field Angle (w/50° lens): 56°
Field Angle (w/15°–30° lens)(Narrow): 15°
Field Angle (w/15°–30° lens)(Wide): 29°
Field Angle (w/25°–50° lens)(Narrow): 25°
Field Angle (w/25°–50° lens)(Wide): 48°
Dimming Modes: 9
Lumens (w/19° lens): 5,274
Lumens (w/26° lens): 6,025
Lumens (w/36° lens): 6,322
Lumens (w/50° lens): 6,349
Illuminance (w/19° lens): 4,380 lux @ 5 m
Illuminance (w/26° lens): 2,743 lux @ 5 m
Illuminance (w/36° lens): 1,578 lux @ 5 m
Illuminance (w/50° lens): 624 lux @ 5 m
Illuminance (w/15°–30° lens)(Narrow): 8,810 lux @ 5 m
Illuminance (w/15°–30° lens)(Wide): 2,351 lux @ 5 m
Illuminance (w/25°–50° lens)(Narrow): 3,616 lux @ 5 m
Illuminance (w/25°–50° lens)(Wide): 1,090 lux @ 5 m
PWM Frequency: 600 Hz
