Cat 5 Distribution System 1 In 4 Out
Transmitter unit only The avCat video transmission system is a modular distribution system for VGA and audio signals using Cat 5/6 cabling. The VGA image from a computer can be displayed on up to 500 monitors connected by up to 10km Cat 5/6 cabling.
Maximum Resolution: up to 2048×1536 @ 85 Hz
Maximum Distance: 125/300 meter (for vr125/ds125 & vr300/ds300, respectively)
Video Compatibility: VGA, SVGA, XGA, SXGA+, UXGA
Video Bandwidth: Transmitter: 400 MHz Receiver: 250 Mhz
Link Cable: Cat 5/5e/6 UTP/FTP Cable, EIA/TIA 568

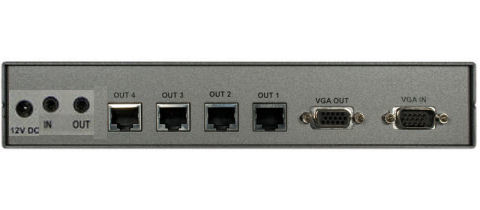

Connectors vt1: In: 1x HD15 (VGA), Out: 1x RJ45 (link), 1x HD15 (VGA) / vt4: In: 1x HD15 (VGA), Out: 4x RJ45 (link), 1x HD15 (VGA)
Audio versions have additional MiniJack in/out connectors
Connectors vr125: In: 1x HD15 (VGA), Out: 1x HD15 (VGA) / vr300: In: 1x HD15 (VGA), Out: 1x HD15 (VGA)
